INSYS routers are easy to install and feature a startup wizard that makes it easy to make them ready for operation.

Proceed as follows to bring your router into service:

  1. Connect Internet connectivity (WAN) depending on technology (Cellular Radio, LAN, DSL, Fiber) according to the following illustrations.

    Cellular radio

    LAN

    DSL / Fiber

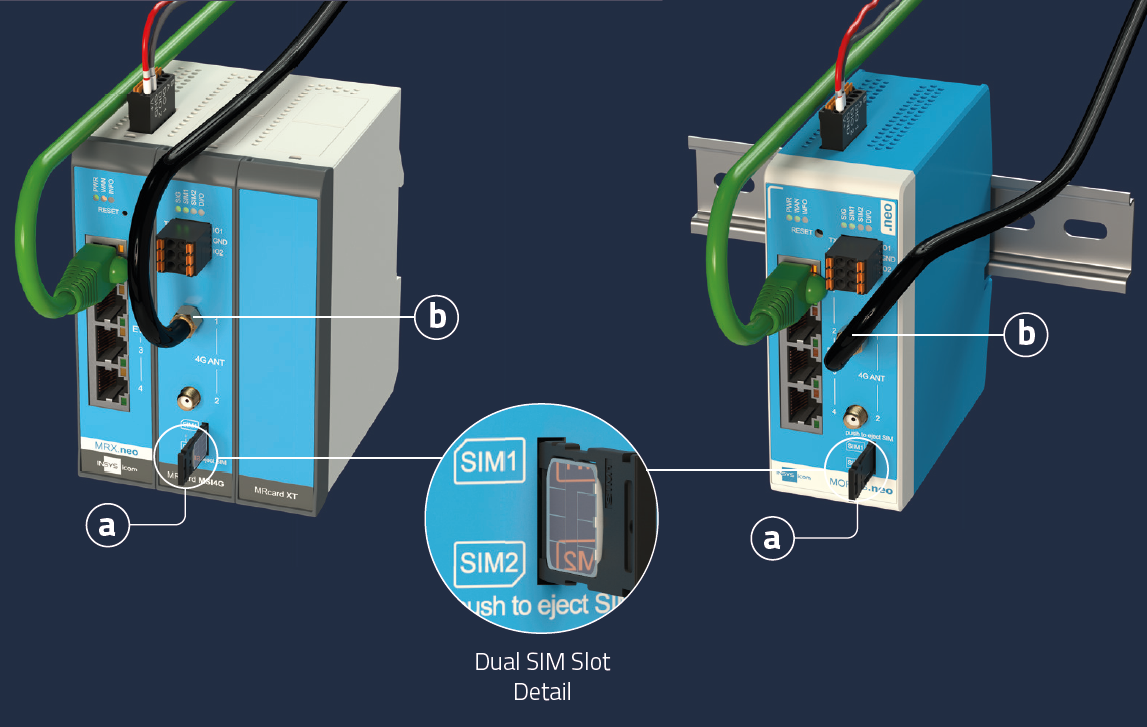

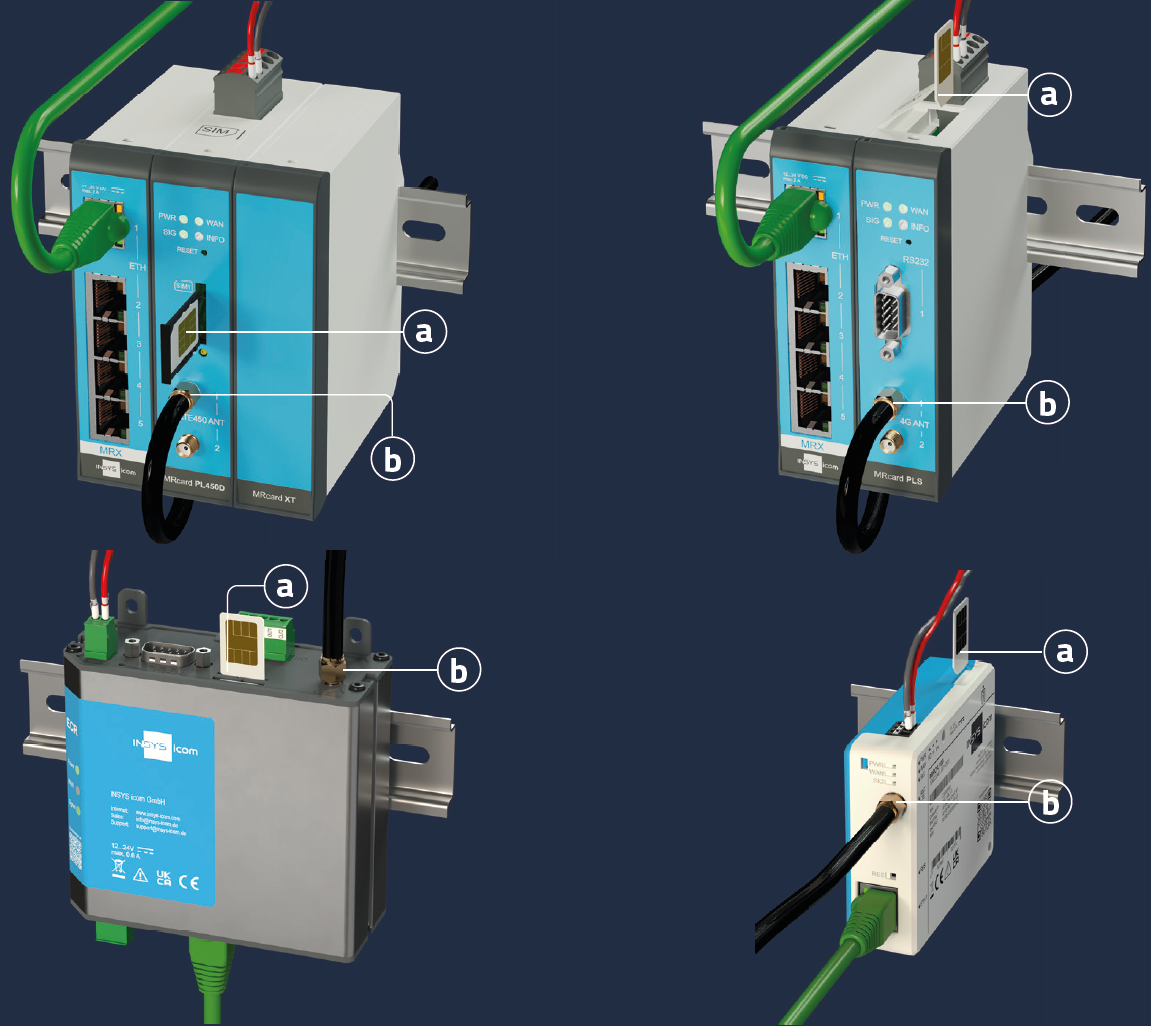

    a) Insert SIM card (SIM 1)

    b) Connect antenna (LTE 1)

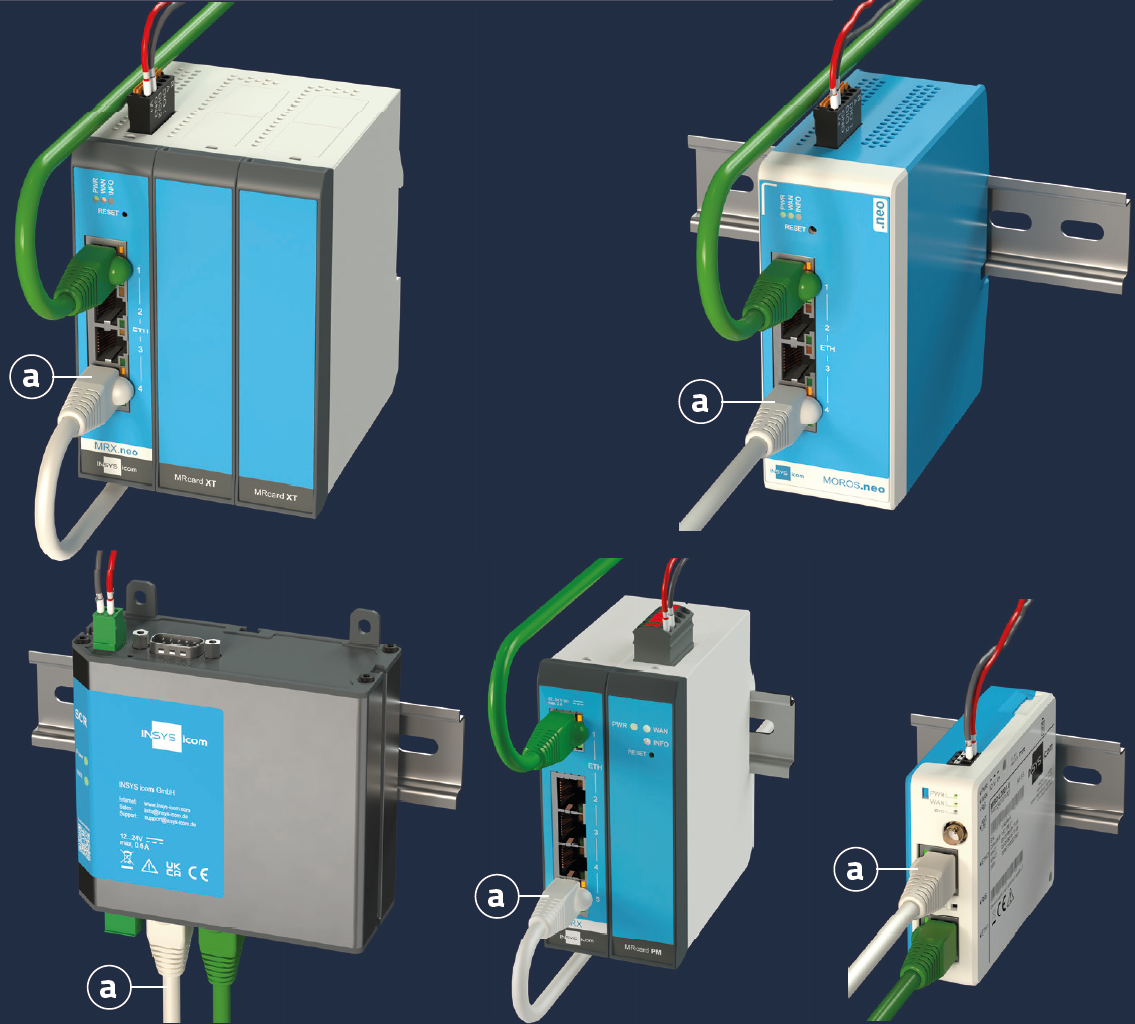

    a) Connect the network that is used to establish the Internet connection to the router

    • MRX/MRO: ETH 5

    • ECR/SCR: ETH 2

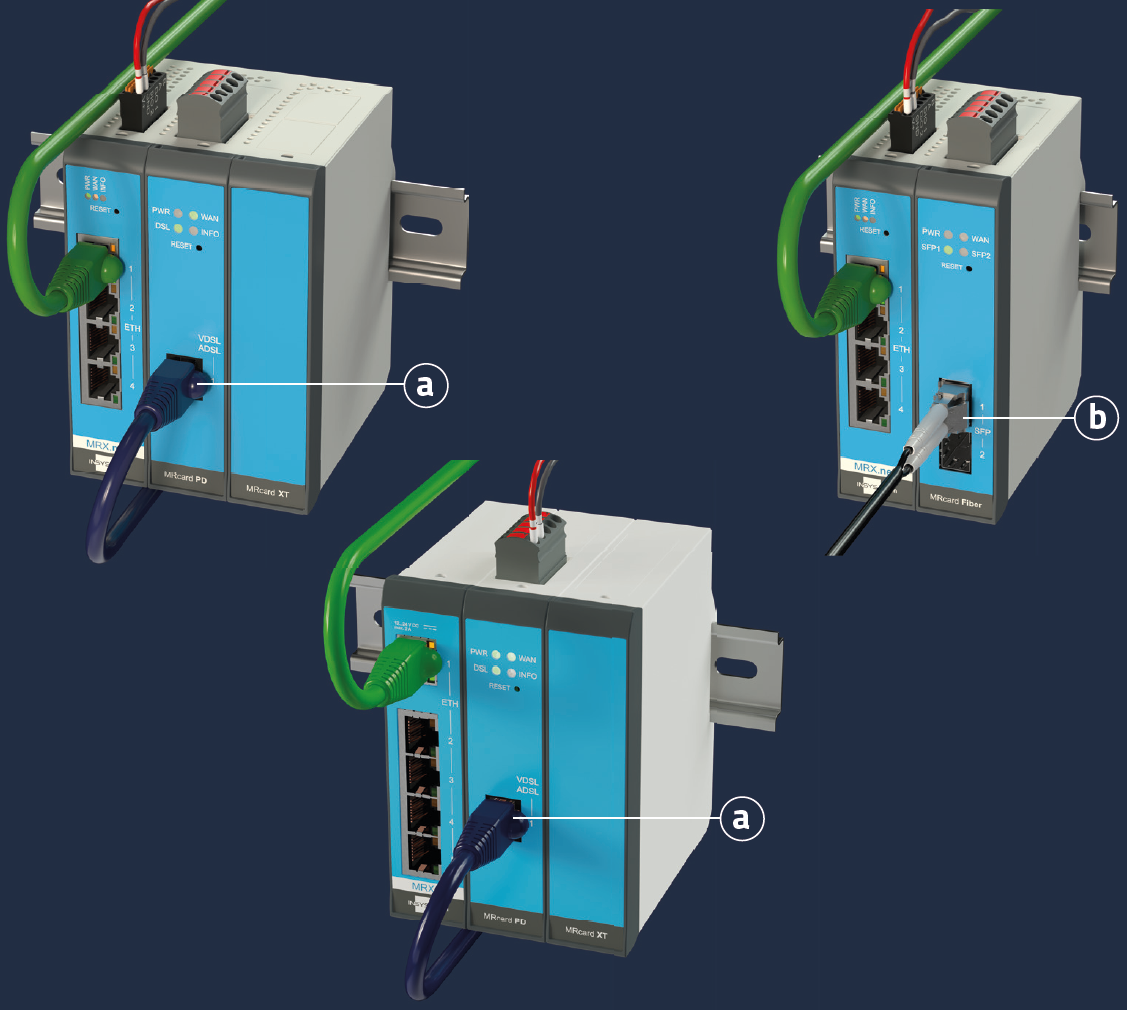

    a) Connect the DSL connection line / SFP module with glass fiber line to the router

    • MRX DSL: VDSL/ADSL

    • MRX Fiber: SFP 1

  2. Connect supply voltage (12 V … 24 V DC) to the router (terminals V+ and V- or VIN and GND depending on the router)

  3. Connect the PC used for configuration to the router (yellow cable in the figures above in the ETH 1 socket)

  4. Enter IP address of the router in address bar of the browser (default: https://192.168.1.1). A DHCP client must be active on the PC. Otherwise, enable the DHCP client or configure a static IP.

  5. Execute the Startup Wizard from the startup screen or in the Wizards menu.

A router in default settings will open with a splash screen that provides three options for configuring the router.

Startup wizard starts an assisted configuration that enables you to set up the router for

  • System time synchronisation

  • User authentication

  • Internet (WAN) connection

  • VPN connection (icom Connectivity Suite or custom OpenVPN or IPsec)

  • Local network connection

  • icom Router Management

and make the router ready for operation.

Manual configuration enables you to configure the router manually for the specific needs of your application.

Upload settings and files enables you to upload files that contain a complete configuration, updated firmware, certificates or containers.
